pathogen analysis

IFAST for pathogen analysis

We have applied the technique of immiscible filtration assisted by surface tension (IFAST) to magnetically capture and isolate pathogen DNA from urine and stool samples for analysis of STDs and infection. This work has been carried out in collaboration with Dr Kirsty Shaw at Manchester Metropolitan University.

IFAST - stool samples


In a project supported by the Newton Fund in collaboration with Dr Kevin Land’s team CSIR in Pretoria (South Africa), we have developed an IFAST device for fast analysis of E.coli in waste water samples. Combining the specificity of immunomagnetic separation and the sensitivity of the subsequent adenosine triphosphate (ATP) assay with bioluminescence, we were able to detecting E. coli O157:H7 from just 6 colony forming units (CFU) in 1 mL spiked buffer within 20 min using a portable, field-deployable device.

IFAST - Figure 1_design principle

Pathogen analysis in raw meat samples

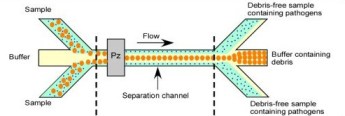

We have also carried out a research project in collaboration with diagnostics company bioMérieux on pathogen analysis in meat samples such as chicken and beef as well as blood samples using magnetophoresis and acoustophoresis to isolate and pre-concentrate pathogens.

Microsoft Word - aca_234464_Graphical abstracts    food pathogens - acoustophoresis principle

Pathogen analysis for veterinary diagnostics

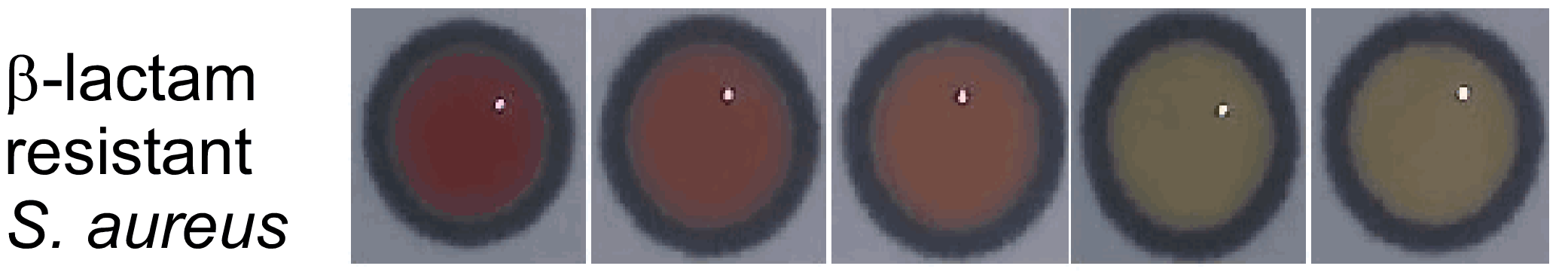

In a project support by the Commonwealth Scholarships programme, we are working on pathogen analysis for veterinary diagnostics employing colorimetric assays in paper microfluidic devices.

Asif - figure 2

Selected references

  • B. Ngamsom, A. Truyts, L. Fourie, S. Kumar, M.D. Tarn, A. Iles, K. Moodley, K.J. Land, N. Pamme, A Microfluidic Device for Rapid Screening of E. coli O157:H7 Based on IFAST and ATP Bioluminescence Assay for Water Analysis, Chemistry – A European Journal, 2017, doi: 10.1002/chem.201703487
  • O. Mosley, L. Melling, M.D. Tarn, C. Kemp, M.M.N. Esfahani, N. Pamme, Kirsty J. Shaw, Sample introduction interface for on-chip nucleic acid-based detection of Helicobacter pylori from stool samples, Lab on a Chip, 2016, 16, 2108-2115. doi: 10.1039/c6lc00228e
  • B. Ngamsom, M.M.N. Esfahani, C. Phurimsak, M.J. Lopez-Martinez, J-C. Raymond, P. Broyer, P. Patel, N. Pamme, Multiplex Sorting of Foodborne Pathogens by on-chip Free-Flow Magnetophoresis, Analytica Chimica Acta, 2016, 918, 69-76. doi: 10.1016/j.aca.2016.03.014
  • B. Ngamson, M.J. Lopez-Martinez, J-C. Raymond, P. Broyer, P. Patel, N. Pamme, On-chip acoustophoretic isolation of microflora including S. typhimurium from raw chicken, beef and blood samples, Journal of Microbiological Methods, 2016, 123, 79-86. doi: 10.1016/j.mimet.2016.01.016
  • C. Kemp, J. Wojciechowska, M.M.N. Esfahani, G. Benazzi, K.J. Shaw, S.J. Haswell, N. Pamme. On-chip processing and DNA extraction from large volume urine samples for the detection of Herpes simplex virus 2. Proceedings: T. Fujii et al. (eds), Chemical and Biological Microsystems Society, 2012, 911-913.
